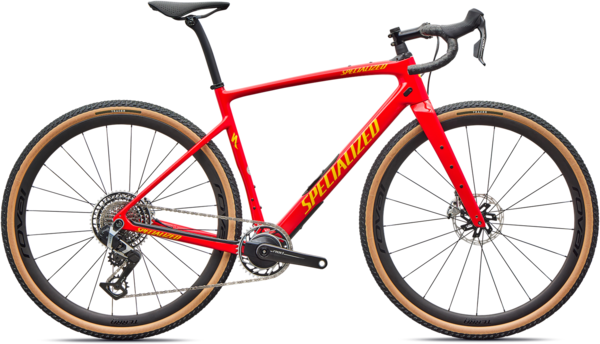

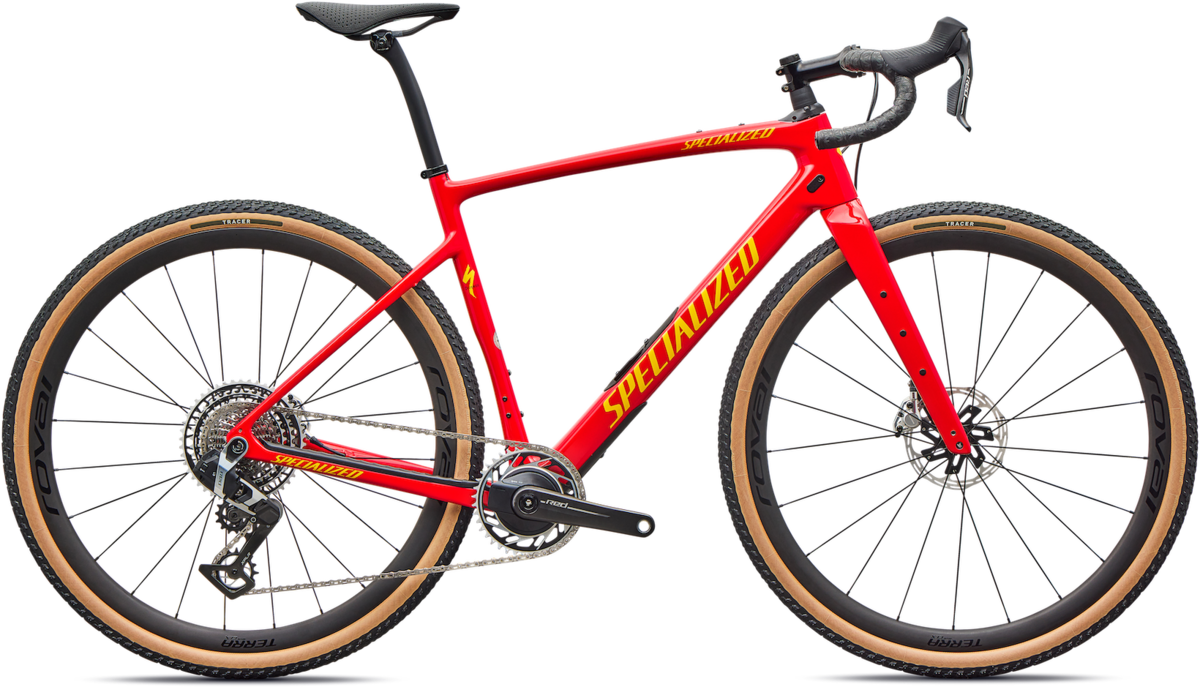

Specialized Diverge 4 Pro LTD

Specialized Diverge 4 Pro LTD
  • Color: Gloss Flow Red Yellow LTD
$10,500.00
Color: Gloss Flow Red Yellow LTD
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

- Use: Gravel Adventure/Race
- Frameset: FACT 9r Carbon
- Suspension: Future Shock 3.3
- Drivetrain/Wheels: SRAM Red AXS XPLR with Quarq / Roval Terra CLX II
- Storage: SWAT 4.0
- 8.01kg

Sizes:
Size49cm52cm54cm56cm58cm61cm
Stack (mm) 563 578 592 610 634 659
Reach (mm) 365 374 387 400 412 425
Head Tube Length (mm) 90 104 116 135 161 187
Head Tube Angle (°) 70 70.5 71 71 71 71
BB Drop (mm) 85 85 85 85 85 85
Trail (mm) 72 68 65 65 65 65
Fork Length, Full (mm) 391 391 391 391 391 391
Fork Rake/Offset (mm) 55 55 55 55 55 55
Front Center (mm) 604 613 626 645 665 686
Chainstay Length (mm) 430 430 430 430 430 430
Wheelbase (mm) 1019 1031 1041 1060 1081 1102
Top Tube Length, Horizontal (mm) 521 537 556 575 593 613
Bike Standover Height (mm) 700 725 754 779 805 832
Seat Tube Length (mm) 400 430 470 500 530 560
Seat Tube Angle (°) 74.5 74 74 74 74 74
Crank Length (mm) 165 170 172.5 172.5 175 175
Handlebar Width (mm) 380 400 420 420 440 440
Stem Length (mm) 60 70 80 90 100 100
Saddle Width (mm) 155 155 143 143 143 143
Seatpost Length (mm) 330 330 380 380 380 380
Sizes:
Size49cm52cm54cm56cm58cm61cm
height (cm) 155-163 163-170 170-175 175-180 180-188 188-196

Specs

Frame Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Wheels Front: Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Rear: Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
Tires Tracer 700x45, Tan Sidewall, Tubeless Ready
Bottom Bracket SRAM DUB BSA 68 Wide
Crankset SRAM Red AXS, Quarq Power Meter, 40t Chainring
Shifters SRAM Red AXS E1
Rear Derailleur SRAM Red XPLR, 13sp
Cassette/Freewheel SRAM Red XPLR, 13sp, 10-46t
Chain SRAM Red E1 Chain
Brakes SRAM Red AXS, hydraulic disc
Handlebars Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Tape/Grips Supacaz Super Sticky Kush
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
Seatpost Roval Terra Carbon Seat Post, 20mm Offset
Saddle S-Works Power with Mirror
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Flow Red Yellow LTD / 49cm / 700c 196625275579 95426-1149
Gloss Flow Red Yellow LTD / 52cm / 700c 196625275494 95426-1152
Gloss Flow Red Yellow LTD / 54cm / 700c 196625275517 95426-1154 210000021212
Gloss Flow Red Yellow LTD / 56cm / 700c 196625275425 95426-1156
Gloss Flow Red Yellow LTD / 58cm / 700c 196625275524 95426-1158
